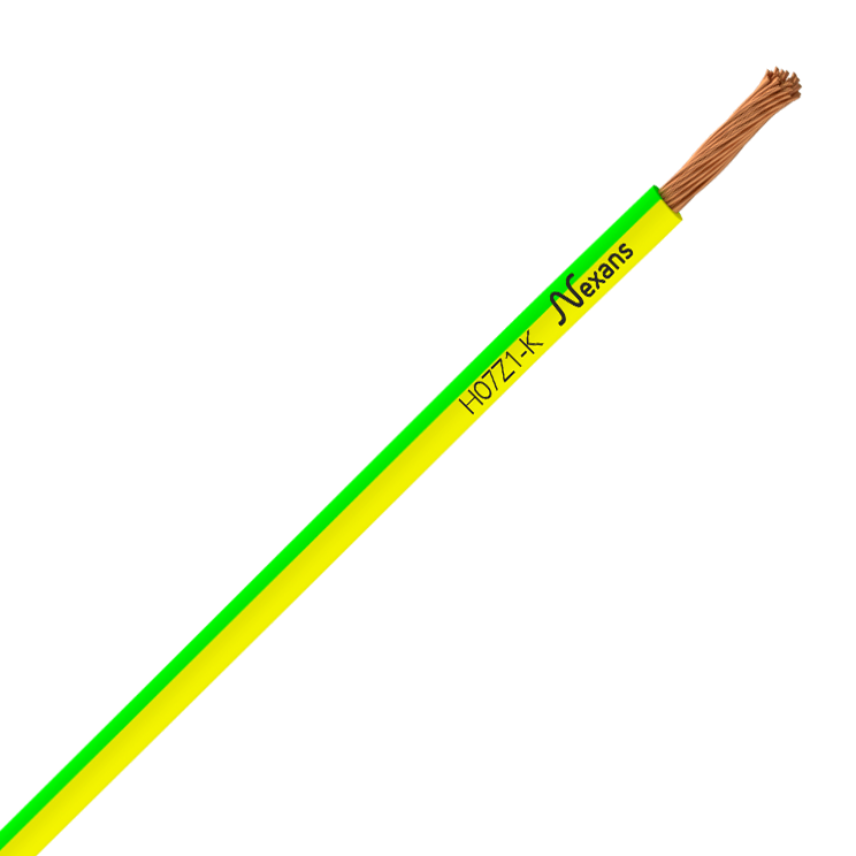

ALSECURE® H07Z1-K (AS), 1G35 mm², Green-Yellow
ALSECURE® H07Z1-K (AS), 1G35 mm², Green-Yellow
Nexans H07Z1-K are used for fixed secured installations
Read more- Nexans ref. : 10097991
Description
Description
Standards
-
ProductEN 50525-3-31; EN 50575; IEC 60228; UNE 21022; UNE 211002
-
TestEN 50266-2-4; EN 50267-2-2; IEC 60332-1; IEC 60332-3-24; IEC 61034-2; NF C32-070/C2; UNE EN 50267-2-3 ; UNE-EN 50265-2-1
Application
Flexible insulated conductors Nexans H07Z1-K are used for fixed secured protected installation.
Halogen free, fire retardant with low emission of smoke, Nexans H07Z1-K may be used in public buildings or areas where fire safety is concerned
Installation
Nexans H07Z1-K can be installed in open air, in conduit, in cable ducting, in switch cabinets.
Thanks to the sliding properties of the insulation, installation is made easier while pulling in...
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Flexible class 5
Conductor material
Bare copper
Insulation
Halogen free, TI 7 acc. EN 50363-7
Lead free
Yes
Halogen free
Yes
Conductor shape
Circular
Insulation colour
Black
With Green/Yellow core
Yes
With smaller neutral conductor
No
Dimensional characteristics
Dimensional characteristics
Conductor cross-section
35 mm²
Approximate weight
35 kg/km
Neutral conductor section (when smaller)
- mm²
Number of cores
1
Outer Diameter
- mm
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
450/750 V
Max. DC resistance of the conductor at 20°C
- Ohm/km
Maximum operating voltage
750 V
Permissible current rating in open air
- A
Test voltage
2500 V
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Flexible
Mechanical resistance to impacts
Low
Usage characteristics
Usage characteristics
Max. conductor temperature in service
70 °C
Fire retardant
EN IEC 60332-3-24 (cat C)
Flame retardant
EN 50265-2-1
Smoke density
EN 50268-2
Chemical resistance
Restricted to oil, acid & base
Maximum operating temperature
70 °C
Packaging
Coil
Water proof
Limited
Weather resistance
Restricted, not ozon stable
Resources
Resources
Selling & delivery Information
Ink jet marking
USE - HAR- ALSECURE H07Z1-K (AS) TYPE 2 AENOR PLANT N° NEXANS – DAY YEAR
