Nexans H07RN-F TITANEX®

TITANEX

TITANEX, the Nexans H07RN-F is a flexible cable, elastomer insulated and sheathed cable with a copper core.

Download all documents

Products

Description

Standards

Product

2014/68/EU; EN 50525-2-21; HD 516; IEC 60245-4 type 66; NF C32-102-4
International

EU Directive 2011/65/EU (RoHS)

Advantages

Very high flexibility
Very high crush resistance
Good resistance to chemicals, oils and vibrations

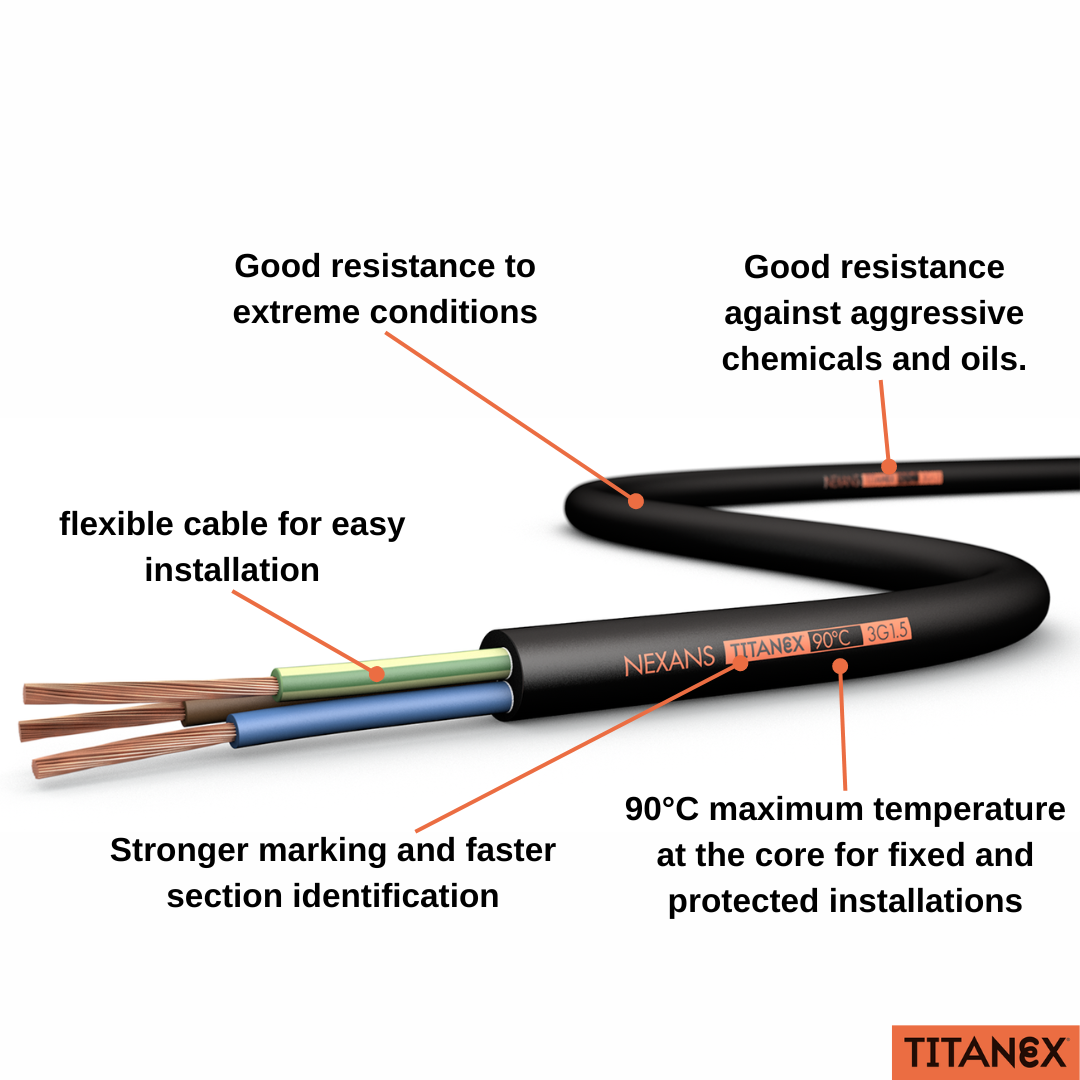

TITANEX® H07RN-F cables with EPR rubber insulation and rubber sheathing offer outstanding mechanical properties to meet your most varied requirements. No matter what the installation conditions are, whether indoors or outdoors, in cramped and hazardous environments or in the presence of oils and chemicals, TITANEX combines strengh and flexibility to meet all your requirements.
For more than 50 years the TITANEX® cables have been recognized and are the guarantee of reliable installations in industrial environments (factories, contruction sites, ports, ...) whether they are fixed or mobile such as for cranes, machines tool connections, motor power supplies .... The mechanical qualities of TITANEX cables also make them suitable for use in event environments, such as festivals, concerts and sport events, where the cable is exposed without protection and can be used several times.

Core temperature : 90°C
Operating Voltage : 450/750V mobile, 0.6/1kV fixed. TITANEX H07RN-F cables have been designed tio limit the generation and spread of fire and smoke.
Reaction to fire : Eca (according to EN 50575:2014+A1:2016)
Flame retardant (IEC 60332-1, C2)

Installation

TITANEX H07RN-F cables can be laid in cable trays, on shelves, inside ducts or fixed to walls, outside with or without protection. They can also be immersed with additionnal mechanical protection. Additionnaly, they can also be intalled outdoors without protection (UV resistance).

Minimum bending radius

Dynamic : 6 to 8 x outer diameter of the cable.
Static : 3 x outer diameter of the cable if OD< or = 12mm ; 4x if OD > 12mm.

Laying cable conductors

When pulling the cable, all conductors must be equally stressed. Th tensils force must never exceed 15N/mm2 of total cross-sections.
Th maximum tensile force should never exceed 1000N in total, although the above rule may lead to higher values for large cross-sections.

Marking

TITANEX 90°C n (x or G) s NEXANS CE «har» USE H07RN-F - factory n° Made in France Y Eca n°DoP

Metric marking

Marking every metre, so that only the required length is unwound.

TITANEX MADE TO SURVIVE

Additional informations Nexans TITANEX

Core identification

(In accordance with european harmonization HD308 S2)

1x: black
2x: brown - blue
3x: brown - black - grey (brown - black - blue if the conductor cross-section is 1.5 or 2.5mm²)
3G: brown - blue - green/yellow
4x: brown - black - grey - blue
4G: brown - black - grey - green/yellow
5x: black cores with printed numbers
5G: blue - brown - black - grey - green/yellow
7 cores and above : black cores with printed numbers

Current rating capacities

The data are indicated for continuous duty operation and apply to:

Maximum conductor temperature = 90 °C
Nominal frequencies = 50 or 60 Hz
One cable in free air (on perforated trays)
Ambient temperature = 30 °C

Data recording from IEC 60364-5-52 or NF C 15-100

Voltage drop

The data are based on Cos ø = 0.8

Minimum bending radius

Static use: 3 x cable outer diameter
Dynamic use: 6 to 8 x outer cable diameter.

Nexans Titanex, Made to survive

NEXANS TITANEX FEATURES

Characteristics

Construction characteristics

Conductor material

Bare copper

Insulation

Special cross-linked elastomer

Outer sheath

Special cross-linked elastomer

Sheath colour

Black

Lead free

Yes

Conductor shape

Circular

Dimensional characteristics

Average sheath thickness

- mm

Mechanical characteristics

Mechanical resistance to impacts

AG3

Cable flexibility

Flexible

Usage characteristics

Silicone free

Yes

Chemical resistance

Accidental

Water proof

Good

Length

- m

Max. conductor temperature in service

90 °C

Oil resistance

Yes

Operating temperature, range

-25 ... 55 °C

RoHS compliant

Yes

Short-circuit max. conductor temperature

250 °C
