Nexans U-1000 AR2V
Nexans U-1000 AR2V

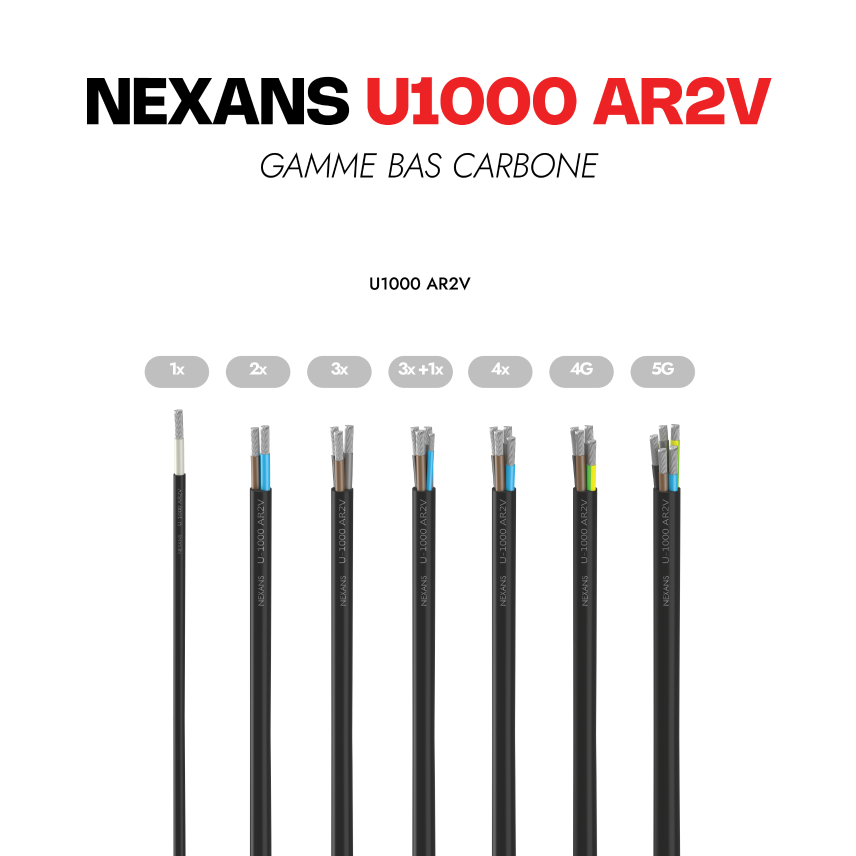

Low voltage power cable for fixed application
Nexans U-1000 AR2V and Nexans TWISTAL U-1000 AR2V cables, 100% manufactured in France (plant Jeumont 59), guarantee a minimum 35% reduction in greenhouse gas emissions compared to standard cables.
This offer is built on the guaranteed use of low-carbon aluminium and recycled plastic, as well as the use of renewable or decarbonised energies in manufacturing the cables.
Nexans provides all the environmental data for its products (PEP Ecopassport®)
Nexans U-1000 AR2V 1x25
Nexans ref. 10057424
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 1
- Conductor cross-section: 25 mm²
Nexans U-1000 AR2V 1x35
Nexans ref. 10044029
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 1
- Conductor cross-section: 35 mm²
Nexans U-1000 AR2V 1x50
Nexans ref. 10043984
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 1
- Conductor cross-section: 50 mm²
Nexans U-1000 AR2V 1x70
Nexans ref. 10043985
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 1
- Conductor cross-section: 70 mm²
Nexans U-1000 AR2V 1x95
Nexans ref. 10043986
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 1
- Conductor cross-section: 95 mm²
Nexans U-1000 AR2V 1x120
Nexans ref. 10043987
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 1
- Conductor cross-section: 120 mm²
Nexans U-1000 AR2V 1x150
Nexans ref. 10043988
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 1
- Conductor cross-section: 150 mm²
Nexans U-1000 AR2V 1x185
Nexans ref. 10043989
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 1
- Conductor cross-section: 185 mm²
Nexans U-1000 AR2V 1x240
Nexans ref. 10043990
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 1
- Conductor cross-section: 240 mm²
Nexans U-1000 AR2V 1x300
Nexans ref. 10043991
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 1
- Conductor cross-section: 300 mm²
Nexans U-1000 AR2V 1x400
Nexans ref. 10043992
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 1
- Conductor cross-section: 400 mm²
Nexans U-1000 AR2V 1x500
Nexans ref. 10044013
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 1
- Conductor cross-section: 500 mm²
Nexans U-1000 AR2V 1x630
Nexans ref. 10044014
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 1
- Conductor cross-section: 630 mm²
Nexans U-1000 AR2V 2x25
Nexans ref. 10057428
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 2
- Conductor cross-section: 25 mm²
Nexans U-1000 AR2V 2x35
Nexans ref. 10098424
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 2
- Conductor cross-section: 35 mm²
Nexans U-1000 AR2V 2x50
Nexans ref. 10057434
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 2
- Conductor cross-section: 50 mm²
Nexans U-1000 AR2V 3x16
Nexans ref. 10205980
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 3
- Conductor cross-section: 16 mm²
Nexans U-1000 AR2V 3x25
Nexans ref. 10057450
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 3
- Conductor cross-section: 25 mm²
Nexans U-1000 AR2V 3G25
Nexans ref. 10240124
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 3
- Conductor cross-section: 25 mm²
Nexans U-1000 AR2V 3x35
Nexans ref. 10057451
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 3
- Conductor cross-section: 35 mm²
Nexans U-1000 AR2V 3G35
Nexans ref. 10057422
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 3
- Conductor cross-section: 35 mm²
Nexans U-1000 AR2V 3x50
Nexans ref. 10057430
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 3
- Conductor cross-section: 50 mm²
Nexans U-1000 AR2V 3G50
Nexans ref. 10177896
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 3
- Conductor cross-section: 50 mm²
Nexans U-1000 AR2V 3x70
Nexans ref. 10043993
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 3
- Conductor cross-section: 70 mm²
Nexans U-1000 AR2V 3G70
Nexans ref. 10175971
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 3
- Conductor cross-section: 70 mm²
Nexans U-1000 AR2V 3x95
Nexans ref. 10044012
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 3
- Conductor cross-section: 95 mm²
Nexans U-1000 AR2V 3G95
Nexans ref. 10175972
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 3
- Conductor cross-section: 95 mm²
Nexans U-1000 AR2V 3x120
Nexans ref. 10057431
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 3
- Conductor cross-section: 120 mm²
Nexans U-1000 AR2V 3x150
Nexans ref. 10057425
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 3
- Conductor cross-section: 150 mm²
Nexans U-1000 AR2V 3x185
Nexans ref. 10057432
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 3
- Conductor cross-section: 185 mm²
Nexans U-1000 AR2V 3x240
Nexans ref. 10057426
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 3
- Conductor cross-section: 240 mm²
Nexans U-1000 AR2V 3x300
Nexans ref. 10057453
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 3
- Conductor cross-section: 300 mm²
Nexans U-1000 AR2V 3x400
Nexans ref. 10057396
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 3
- Conductor cross-section: 400 mm²
Nexans U-1000 AR2V 4G25
Nexans ref. 10057449
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 25 mm²
Nexans U-1000 AR2V 4x25
Nexans ref. 10057463
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 25 mm²
Nexans U-1000 AR2V 4G35
Nexans ref. 10057448
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 35 mm²
Nexans U-1000 AR2V 4x35
Nexans ref. 10043983
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 35 mm²
Nexans TWISTAL® U-1000 AR2V 4x1*35 mm²
Nexans ref. 10218382
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 35 mm²
Nexans U-1000 AR2V 4x50
Nexans ref. 10043994
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 50 mm²
Nexans U-1000 AR2V 3x50+35
Nexans ref. 10057443
- Packaging: Cut to length (m)
- With smaller neutral conductor: Yes
- Number of cores: 4
- Conductor cross-section: 50 mm²
Nexans U-1000 AR2V 4G50
Nexans ref. 10057397
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 50 mm²
Nexans TWISTAL® U-1000 AR2V 4x1*50 mm²
Nexans ref. 10218383
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 50 mm²
Nexans TWISTAL U-1000 AR2V 3x1*50 + 1*35
Nexans ref. 10218439
- Packaging: Cut to length (m)
- With smaller neutral conductor: Yes
- Number of cores: 4
- Conductor cross-section: 50 mm²
Nexans U-1000 AR2V 4x70
Nexans ref. 10043995
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 70 mm²
Nexans U-1000 AR2V 3x70+50
Nexans ref. 10043997
- Packaging: Cut to length (m)
- With smaller neutral conductor: Yes
- Number of cores: 4
- Conductor cross-section: 70 mm²
Nexans U-1000 AR2V 4G70
Nexans ref. 10205655
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 70 mm²
Nexans TWISTAL® U-1000 AR2V 4x1*70 mm²
Nexans ref. 10218414
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 70 mm²
Nexans TWISTAL® U-1000 AR2V 3x1*70 + 1*50 mm²
Nexans ref. 10218440
- Packaging: Cut to length (m)
- With smaller neutral conductor: Yes
- Number of cores: 4
- Conductor cross-section: 70 mm²
Nexans U-1000 AR2V 4x95
Nexans ref. 10043996
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 95 mm²
Nexans U-1000 AR2V 3x95+50
Nexans ref. 10043998
- Packaging: Cut to length (m)
- With smaller neutral conductor: Yes
- Number of cores: 4
- Conductor cross-section: 95 mm²
Nexans U-1000 AR2V 4G95
Nexans ref. 10204292
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 95 mm²
Nexans TWISTAL® U-1000 AR2V 4x1*95 mm²
Nexans ref. 10218418
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 95 mm²
Nexans TWISTAL® U-1000 AR2V 3x1*95 + 1*50 mm²
Nexans ref. 10218441
- Packaging: Cut to length (m)
- With smaller neutral conductor: Yes
- Number of cores: 4
- Conductor cross-section: 95 mm²
Nexans U-1000 AR2V 3x120+70
Nexans ref. 10043999
- Packaging: Cut to length (m)
- With smaller neutral conductor: Yes
- Number of cores: 4
- Conductor cross-section: 120 mm²
Nexans U-1000 AR2V 4x120
Nexans ref. 10057460
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 120 mm²
Nexans U-1000 AR2V 4G120
Nexans ref. 10057459
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 120 mm²
NEXANS TWISTAL® U-1000 AR2V 4x1*120 mm²
Nexans ref. 10218435
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 120 mm²
Nexans TWISTAL® U-1000 AR2V 3x1*120 + 1*70 mm²
Nexans ref. 10218442
- Packaging: Cut to length (m)
- With smaller neutral conductor: Yes
- Number of cores: 4
- Conductor cross-section: 120 mm²
Nexans U-1000 AR2V 4x150
Nexans ref. 10057458
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 150 mm²
Nexans U-1000 AR2V 3x150+70
Nexans ref. 10044000
- Packaging: Cut to length (m)
- With smaller neutral conductor: Yes
- Number of cores: 4
- Conductor cross-section: 150 mm²
Nexans U-1000 AR2V 4G150
Nexans ref. 10057461
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 150 mm²
Nexans TWISTAL® U-1000 AR2V 4x1*150 mm²
Nexans ref. 10218436
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 150 mm²
Nexans TWISTAL® U-1000 AR2V 3x1*150 + 1*70 mm²
Nexans ref. 10218443
- Packaging: Cut to length (m)
- With smaller neutral conductor: Yes
- Number of cores: 4
- Conductor cross-section: 150 mm²
Nexans U-1000 AR2V 3x185+95
Nexans ref. 10044001
- Packaging: Cut to length (m)
- With smaller neutral conductor: Yes
- Number of cores: 4
- Conductor cross-section: 185 mm²
Nexans U-1000 AR2V 3x185+70
Nexans ref. 10057447
- Packaging: Cut to length (m)
- With smaller neutral conductor: Yes
- Number of cores: 4
- Conductor cross-section: 185 mm²
Nexans U-1000 AR2V 4x185
Nexans ref. 10057439
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 185 mm²
Nexans U-1000 AR2V 4G185
Nexans ref. 10057332
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 185 mm²
Nexans TWISTAL® U-1000 AR2V 4x1*185 mm²
Nexans ref. 10218437
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 185 mm²
Nexans TWISTAL® U-1000 AR2V 3x1*185 + 1*95 mm²
Nexans ref. 10218464
- Packaging: Cut to length (m)
- With smaller neutral conductor: Yes
- Number of cores: 4
- Conductor cross-section: 185 mm²
Nexans U-1000 AR2V 4x240
Nexans ref. 10057440
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 240 mm²
Nexans U-1000 AR2V 3x240+95
Nexans ref. 10044002
- Packaging: Cut to length (m)
- With smaller neutral conductor: Yes
- Number of cores: 4
- Conductor cross-section: 240 mm²
Nexans U-1000 AR2V 3x240+150
Nexans ref. 10069329
- Packaging: Cut to length (m)
- With smaller neutral conductor: Yes
- Number of cores: 4
- Conductor cross-section: 240 mm²
Nexans U-1000 AR2V 4G240
Nexans ref. 10057462
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 240 mm²
Nexans TWISTAL® U-1000 AR2V 4x1*240 mm²
Nexans ref. 10218438
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 240 mm²
Nexans TWISTAL® U-1000 AR2V 3x1*240 + 1*95 mm²
Nexans ref. 10218485
- Packaging: Cut to length (m)
- With smaller neutral conductor: Yes
- Number of cores: 4
- Conductor cross-section: 240 mm²
Nexans U-1000 AR2V 3x300+150
Nexans ref. 10057395
- Packaging: Cut to length (m)
- With smaller neutral conductor: Yes
- Number of cores: 4
- Conductor cross-section: 300 mm²
Nexans U-1000 AR2V 4x300
Nexans ref. 10057441
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 300 mm²
Nexans TWISTAL® U-1000 AR2V 4x1x300
Nexans ref. 10235401
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 4
- Conductor cross-section: 300 mm²
Nexans U-1000 AR2V 5G16
Nexans ref. 10088324
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 5
- Conductor cross-section: 16 mm²
Nexans U-1000 AR2V 5G25
Nexans ref. 10057464
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 5
- Conductor cross-section: 25 mm²
Nexans U-1000 AR2V 5G35
Nexans ref. 10204354
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 5
- Conductor cross-section: 35 mm²
Nexans U-1000 AR2V 5G50
Nexans ref. 10204355
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 5
- Conductor cross-section: 50 mm²
Nexans U-1000 AR2V 5X50
Nexans ref. 10057297
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 5
- Conductor cross-section: 50 mm²
Nexans U-1000 AR2V 5G70
Nexans ref. 10204356
- Packaging: Cut to length (m)
- With smaller neutral conductor: No
- Number of cores: 5
- Conductor cross-section: 70 mm²
Description
Description
Standards
-
ProductIEC 60228; IEC 60502-1; NF C32-321
Application
Nexans U-1000 AR2V aluminium cables can be used in all low voltage power installations.
Our range also offers Nexans TWISTAL®, the twisted single-core version of Nexans U-1000 AR2V, specially designed to make three-phase links with neutral. Nexans TWISTAL® simplifies your life and offers many advantages :
- Each core is spotted with a color band
- The twisted core reduces the number of drums and cables pulling
- This solution can allow to reduce the section of used cables (in parallel circuits)
- Nexans TWISTAL® is more flexible and light than a multiconductor, allowing to increase comfort and saving of time
Installation
These cables can be fixed on cable trays, within conduits or fixed to walls.
They also can be buried directly with extra mechanical protection.
Design
- Conductor: stranded circular aluminium - class 2
- Insulation: XLPE - cores identification by colours
- Laying up (for multi conductors): with non hygroscopic filler
- Outer sheath : Lead free black PVC
Construction according to AD8 is possible on request
Marking
N (x ou G) S mm² U-1000 AR2V NF - USE N° Usine S.Y + Sans Pb
- N = number of cores
- S = section in mm²
- G = with Green-Yellow
- x = without Green-Yellow
Without mechanical protection, those cables can be fixed on the wall, cables trays or cable laders.
In buildings with explosion risks, they will be installed with particular protection. In this case, step down of 15% current carrying capacities.
Pulling on cable conductors
Tensile stress per mm2 of globale section shall in no case exceed 3 daN for LV aluminium cable.
The maximum pulling load must never exceed 2000 daN even rule above-mentionned sometimes leads to higher values for large section of cable.
Low carbon offer
Low carbon at a glance
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Aluminum
Conductor flexibility
Stranded class 2
Insulation
XLPE (chemical)
Outer sheath
PVC
Sheath colour
Black
Lead free
Yes
Conductor shape
Circular
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Rigid
Mechanical resistance to impacts
Good
Usage characteristics
Usage characteristics
Max. conductor temperature in service
90 °C
Short-circuit max. conductor temperature
250 °C
Operating temperature, range
-25 ... 60 °C
Weather resistance
AN3
Chemical resistance
Accidental
Flame retardant
C2, NF C 32-070
Water proof
Intermittent
Resources
Resources
Documentation
Core identification
xls — 0 B
Technical Book TWISTAL
pdf — 1.6 MB
TWISTAL Leaflet
pdf — 1.1 MB
Brochure TWISTAL bas carbone
pdf — 6.0 MB
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
