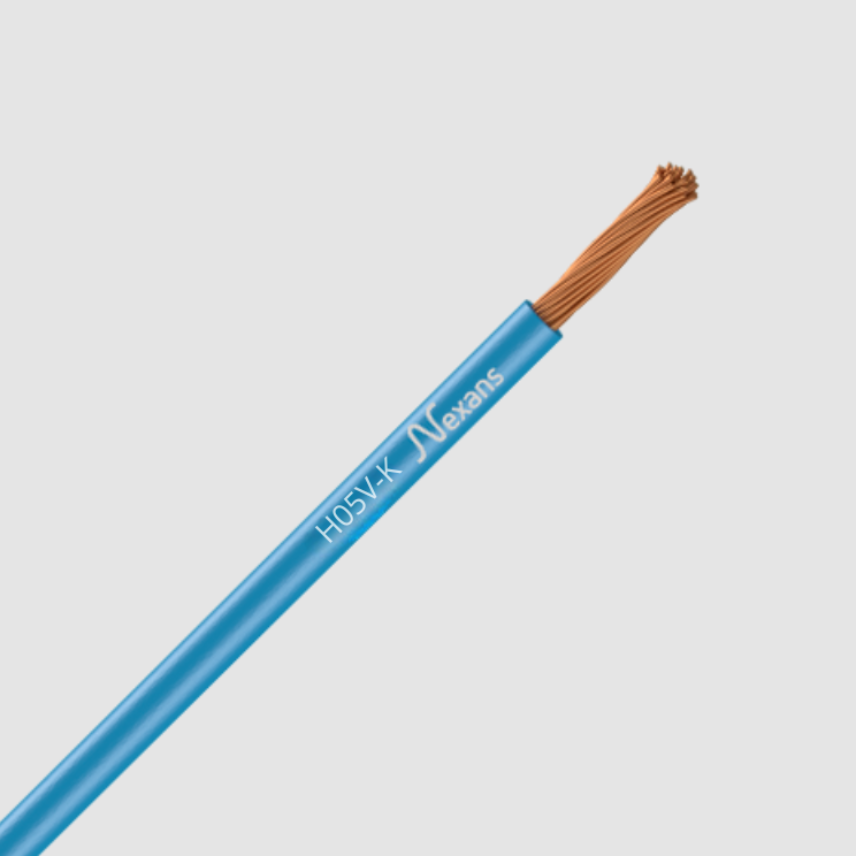

Nexans H05V-K VISIBOX 1x1 LIGHT BLUE C100m
Nexans H05V-K VISIBOX 1x1 LIGHT BLUE C100m
H05V-K cores are used for internal equipment wiring.
Read more- Nexans ref. : 10185116
Description
Description
Standards
-
ProductEN 50525-2-31; HD 21.3; IEC 60227-6; NF C32-201/3
Application
Nexans H05V-K cores are used for internal equipment wiring.
Installation
Open air, or in conduits, or trunking.
Marking
S.Y + USE HAR H05VK - N° plant.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Sheath colour
Ligth Blue - RAL 5012
Conductor flexibility
Flexible class 5
Conductor material
Bare copper
Conductor shape
Circular
Insulation
PVC
Lead free
-
Dimensional characteristics
Dimensional characteristics
Conductor cross-section
1 mm²
Approximate weight
14 kg/km
Nominal outer diameter
3.0 mm
Number of cores
1
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
300/500 V
DC permissible current rating
- A
Permissible current (one phase)
13.5 A
Permissible current rating (3 conductors)
12.0 A
Mechanical characteristics
Mechanical characteristics
Mechanical resistance to impacts
Low
Cable flexibility
Flexible
Usage characteristics
Usage characteristics
Max. conductor temperature in service
70 °C
Short-circuit max. conductor temperature
160 °C
Operating temperature, range
-5 ... 60 °C
Flame retardant
C2, NF C 32-070
Weather resistance
No
Chemical resistance
Accidental
Water proof
Low
Packaging
Coil
Length
100 m
Laying operation bending radius
18 mm
Minimum static operating bending radius
9 mm
Resources
Resources
Documentation
Licence H05V-K
pdf — 63.5 kB
Declaration of Performance
- Declaration of Performance n� : 1000190-FRAU
- Certification Date : 4/5/17
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : NB 1812
- Declared performance : Eca
