Descrição
Descrição
Padrões
-
ProductIEC 60502; UNE 21123
-
TestEN 50265
Application

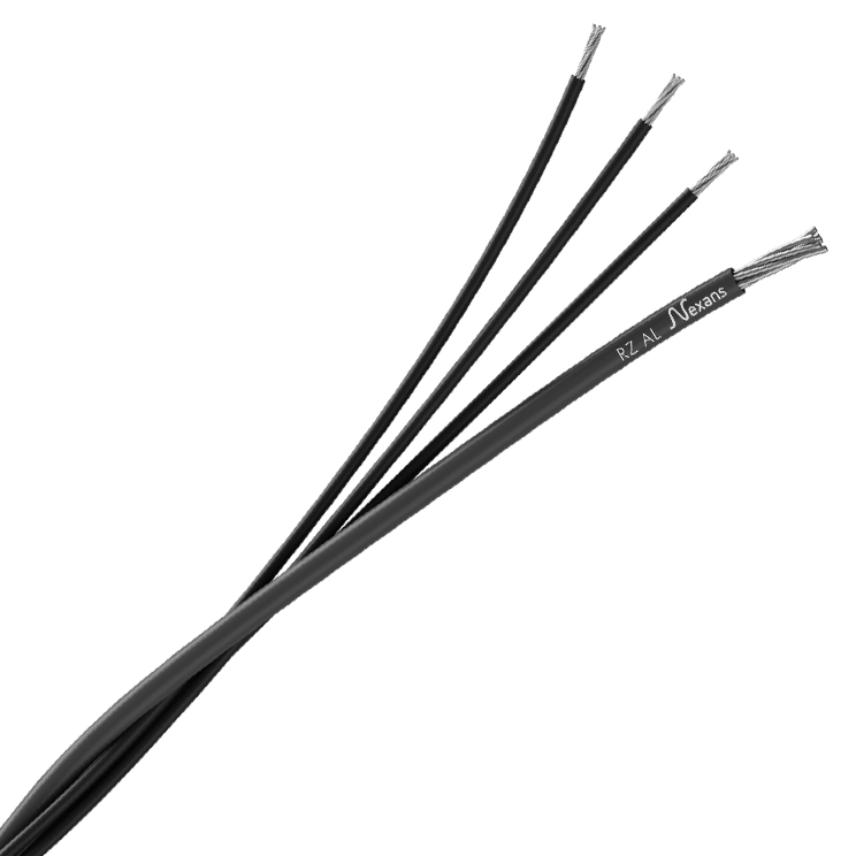

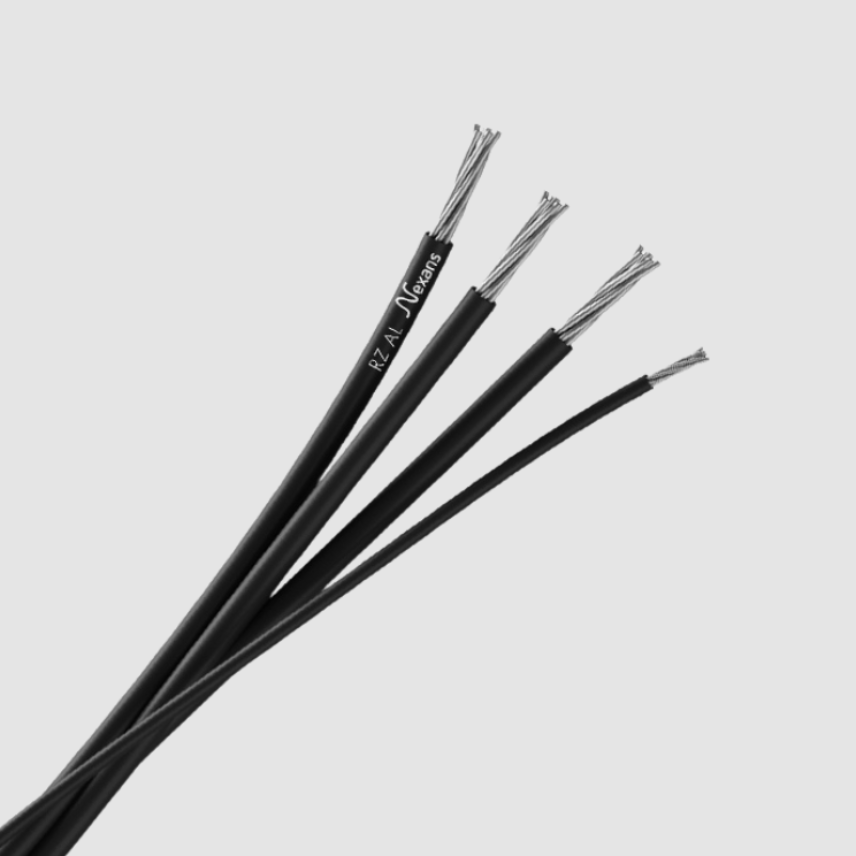

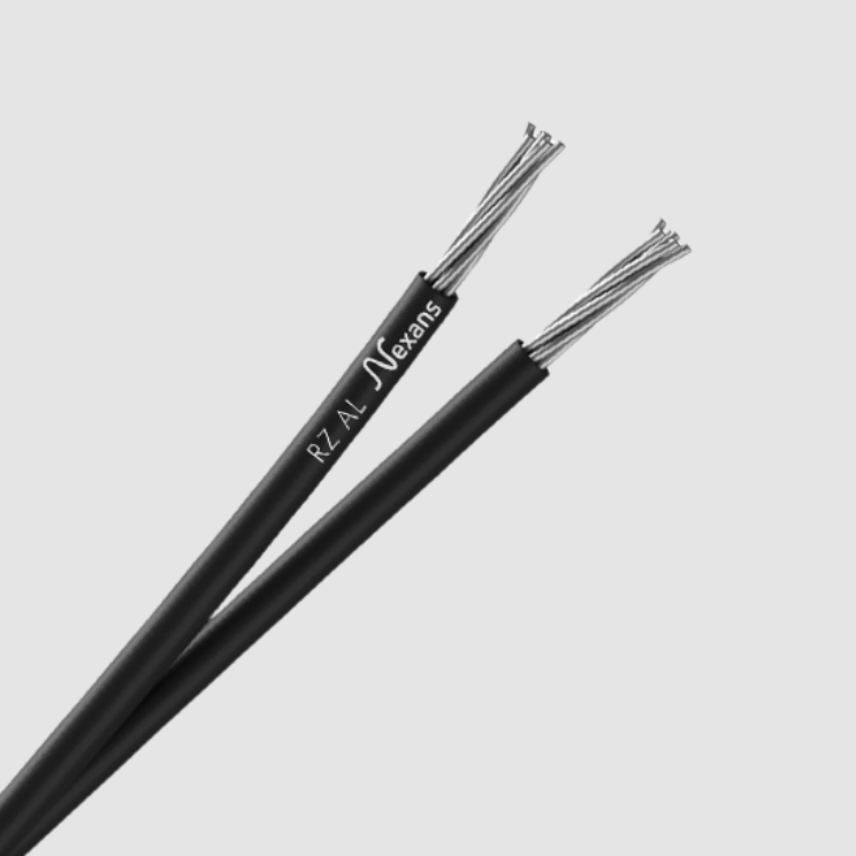

RZ aluminum cables can be used in all the low power installations dedicated to the rural and public feeding.
Installation
These cables are for air transport, or fixed to walls. They should never be buried.
Core colours
- 2 cores = Black
- 3 cores = Black
- 4 cores = Black
Características
Características
Construction characteristics
Construction characteristics
Conductor flexibility
Stranded class 2
Conductor material
Aluminum
Lead free
Yes
Conductor shape
Circular
Características dimensionais
Características dimensionais
Approximate weight
- kg/km
Conductor cross-section
- mm²
Number of cores
-
Outer Diameter
- mm
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0,6/1 kV
Max. DC resistance of the conductor at 20°C
- Ohm/km
Permissible current rating in open air
- A
Permissible current rating when buried
- A
Usage characteristics
Usage characteristics
Max. conductor temperature in service
90 °C
Operating temperature, range
-20 ... 70 °C
Flame retardant
EN 50265-2-1
Water proof
Good
Weather resistance
Very good
Recursos
Recursos
Documentação
PEP ECOPASSPORT RZ AL
pdf — 4.0 MB
Informações de venda e entrega
Marking
N x S mm² RZ AL - Year Fab. - N° Plant
- N = number of cores
- S = section in mm²
- x = without Green-Yellow
