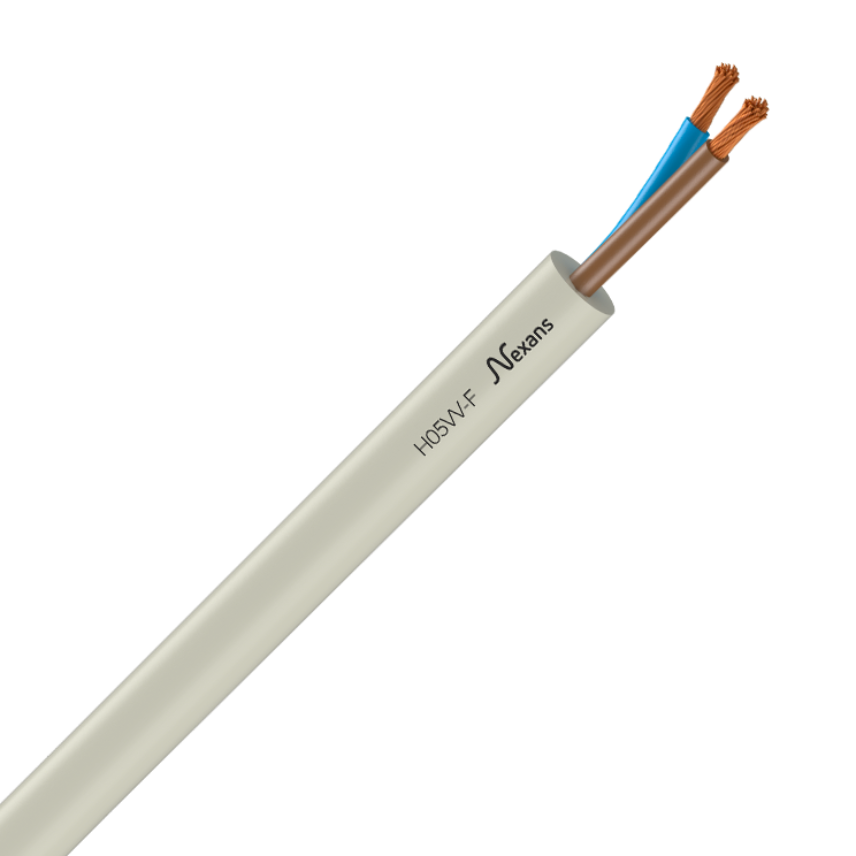

Nexans H05VVF 2x1,5 WHITE* D150m
Nexans H05VVF 2x1,5 WHITE* D150m
Flexible cable, insulation and outer sheath in PVC, domestic use.H05VV-F cables are designed for households. They can only be used for heating and cooking appliances if there is no risk of radiations or contact with hot parts.
Leia mais- Referência Nexans : 10198668
Descrição
Descrição
Padrões
-
ProductEN 50525-2-11; HD 21.5; IEC 60227-53; NF C32-201/5
Application
H05VV-F cables are designed for households. They can only be used for heating and cooking appliances if there is no risk of radiations or contact with hot parts.
Installation
Open air.
Marking
n (x or G) s mm² S.Y + USE HAR H05VV-F N° Usine
- n = number of cores
- s = section in mm²
- G = with Green-Yellow
- x = without Green-Yellow
Características
Características
Construction characteristics
Construction characteristics
With Green/Yellow core
No
Sheath colour
White
Conductor flexibility
Flexible class 5
Conductor material
Bare copper
Conductor shape
Circular
Insulation
PVC
Lead free
Yes
Outer sheath
PVC
With smaller neutral conductor
No
Características dimensionais
Características dimensionais
Conductor cross-section
1,5 mm²
Number of cores
2
Approximate weight
- kg/km
Maximum outer diameter
- mm
Neutral conductor section (when smaller)
- mm²
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
300/500 V
Permissible current rating in open air
- A
Voltage drop, single phase
- V/A.km
Mechanical characteristics
Mechanical characteristics
Mechanical resistance to impacts
Low
Cable flexibility
Flexible
Usage characteristics
Usage characteristics
Max. conductor temperature in service
70 °C
Length
150 m
Packaging
Drum
Short-circuit max. conductor temperature
150 °C
Operating temperature, range
-5 ... 60 °C
Flame retardant
C2, NF C 32-070
Weather resistance
AN1
Chemical resistance
Accidental
Water proof
Accidental
Minimum static operating bending radius
- mm
Recursos
Recursos
Documentação
Licence H05VV-F
pdf — 71.3 kB
Core identification
xls — 0 B
Declaração de desempenho
- Declaração de desempenho nº : 1000138-FRLV
- Data de certificação : 11/10/17
- Avaliação e Verificação da Constância do Desempenho) : System 3
- Corpo notificado : 1812
- Desempenho declarado : Eca
